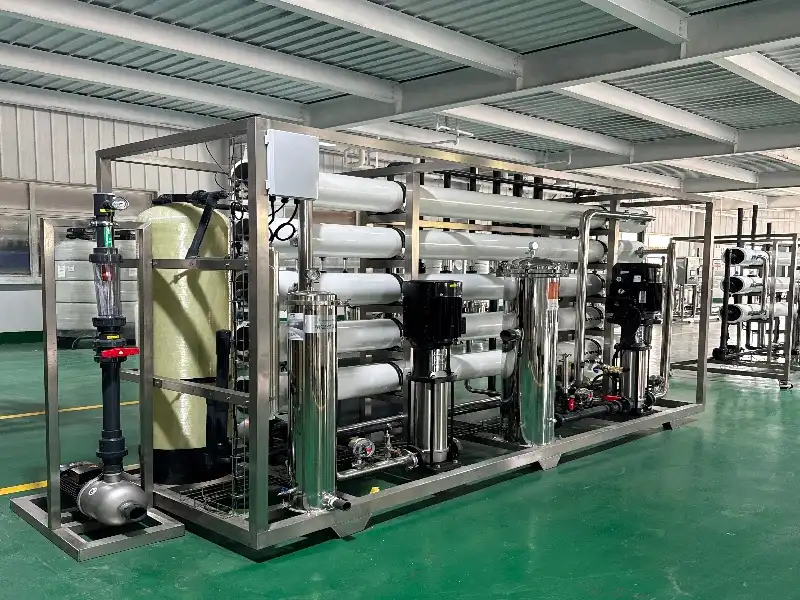

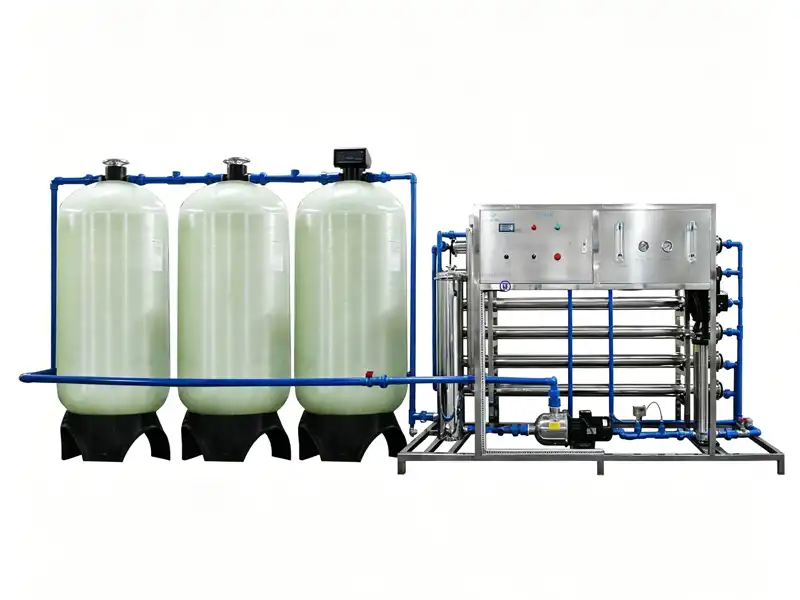

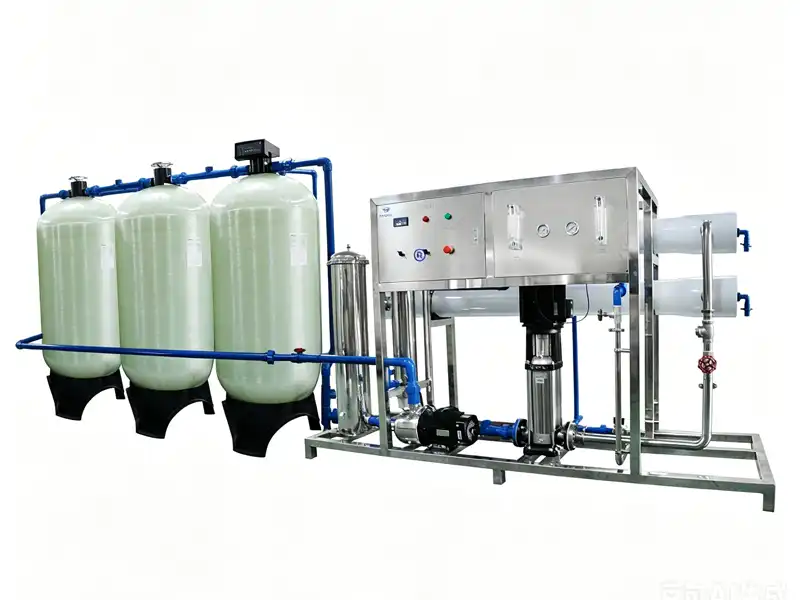

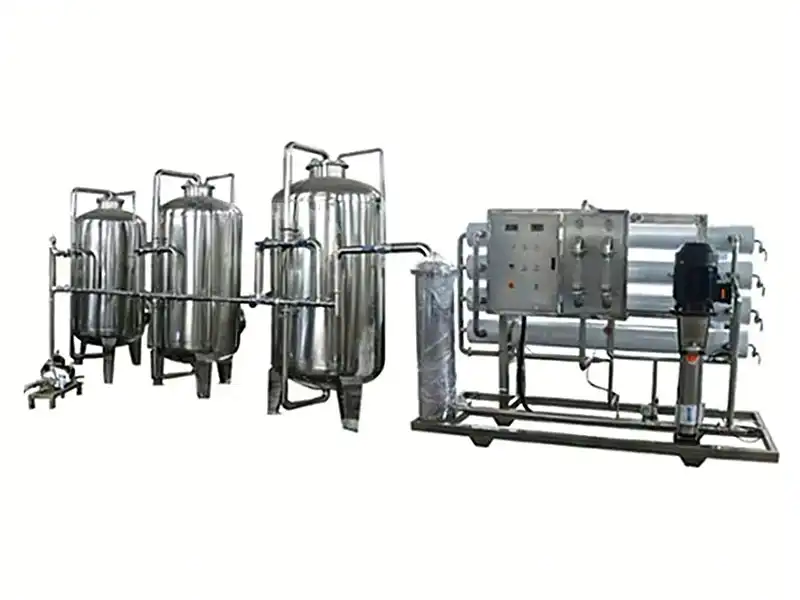

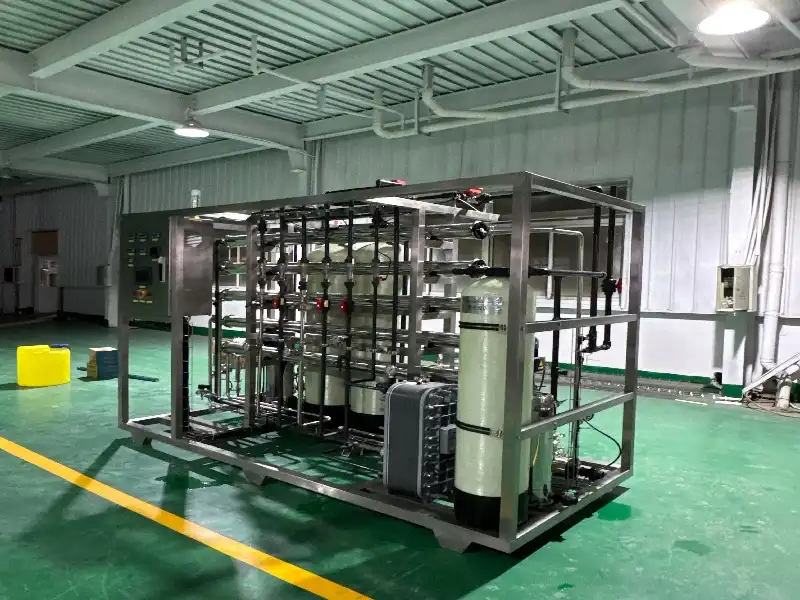

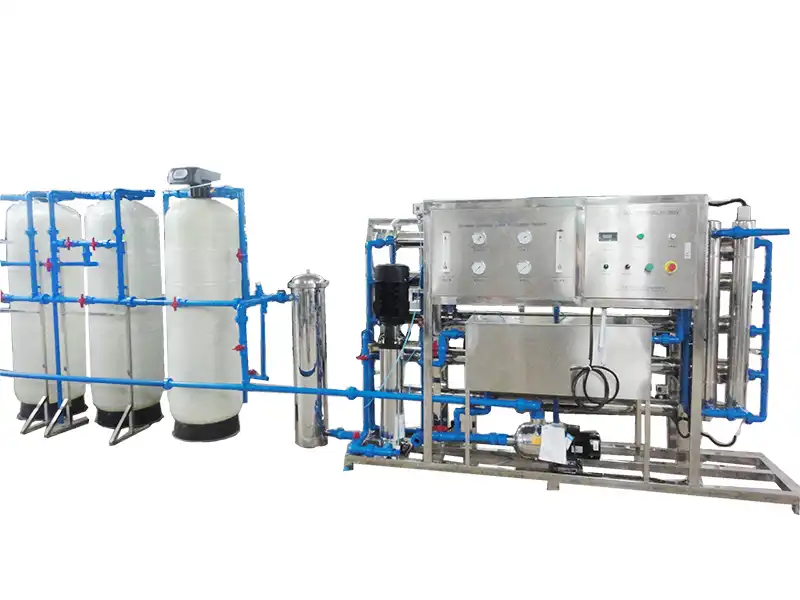

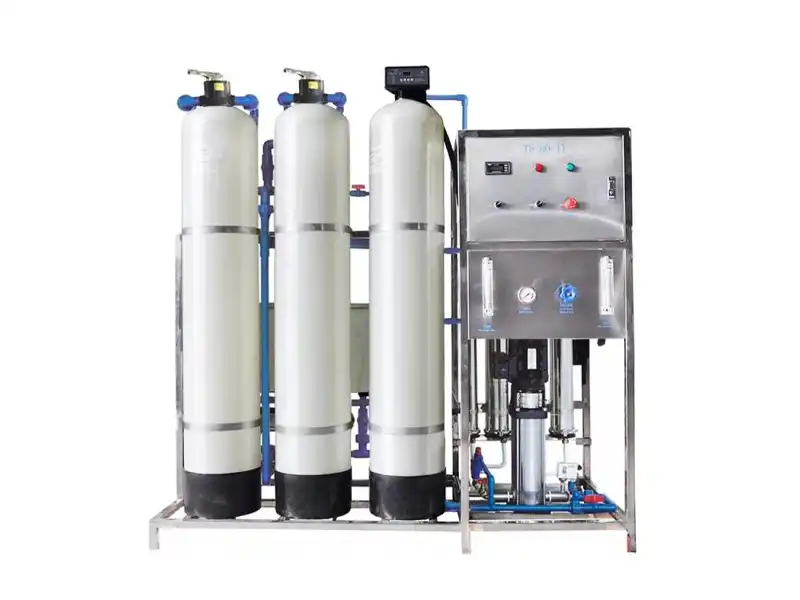

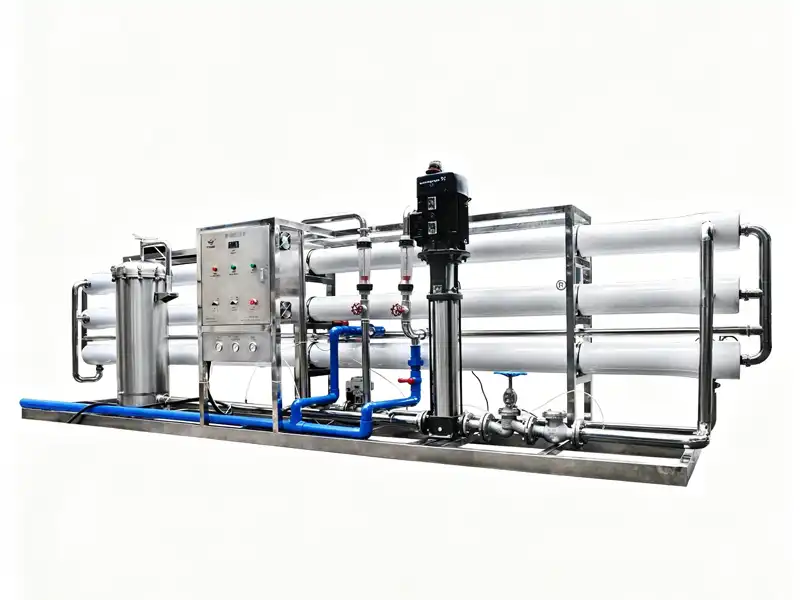

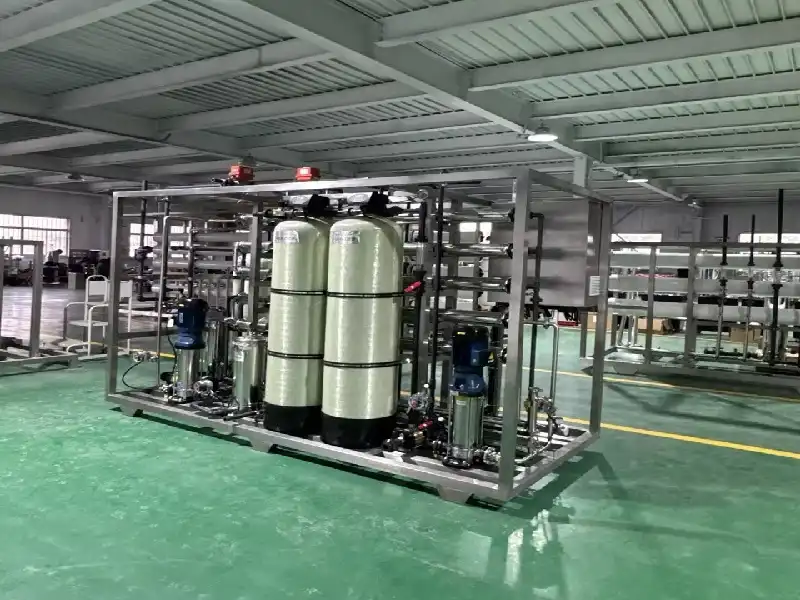

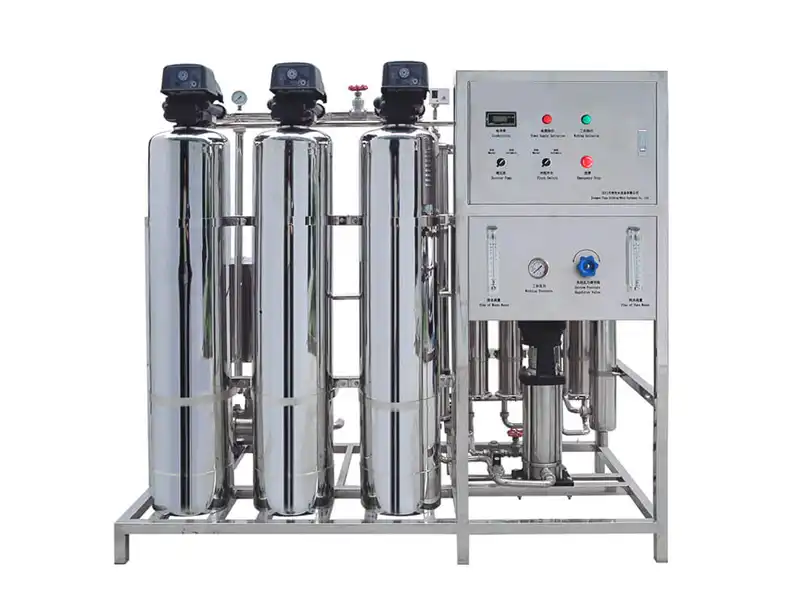

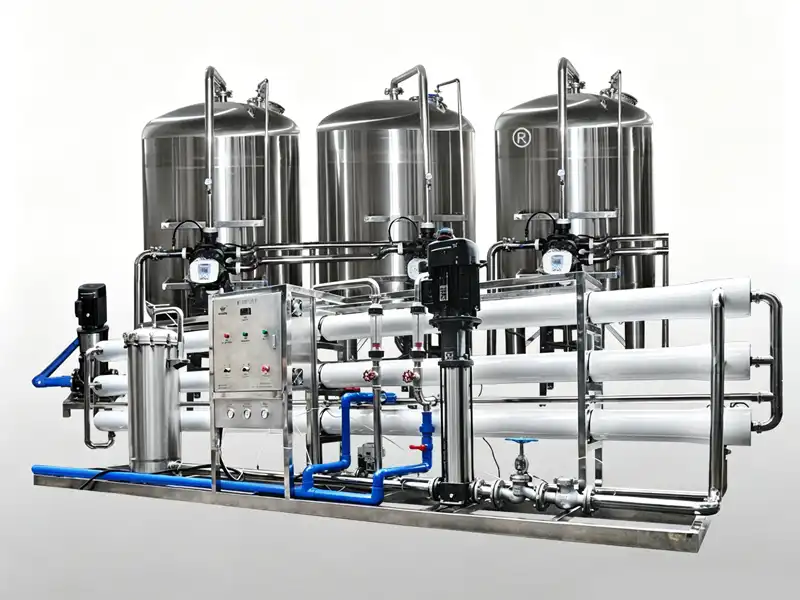

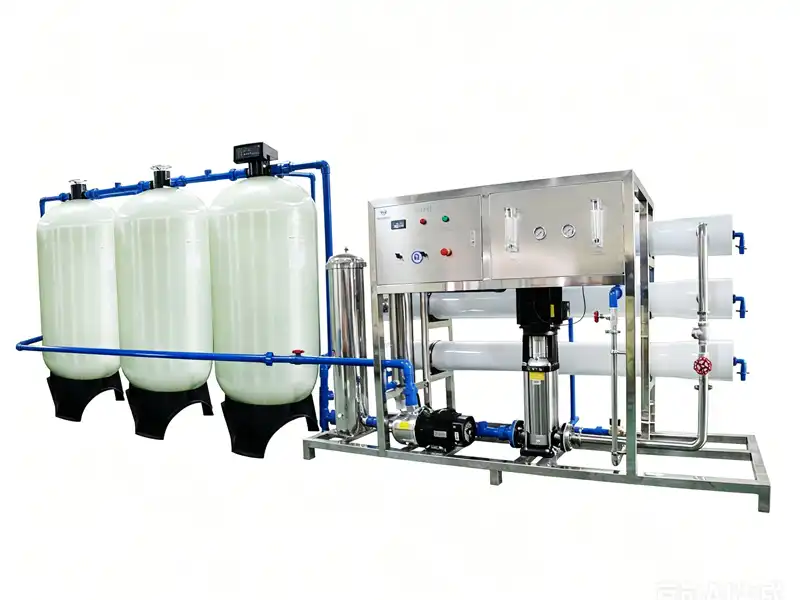

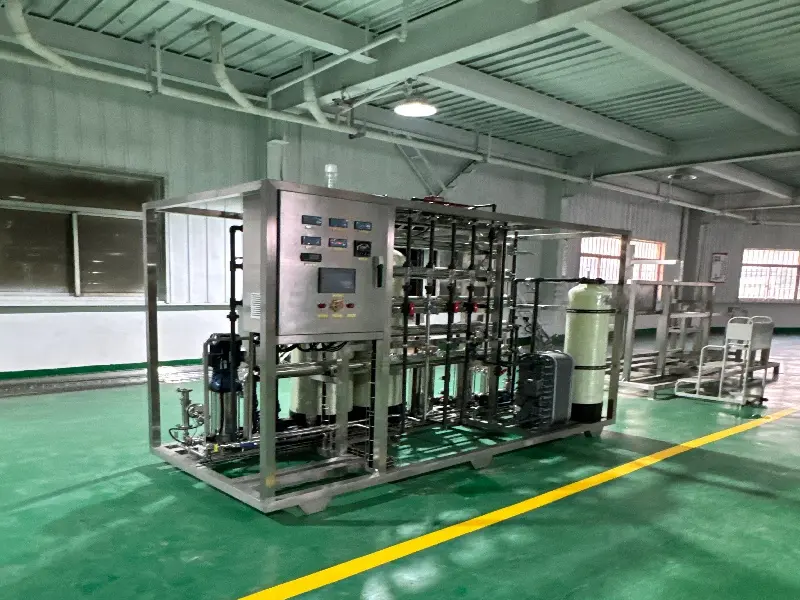

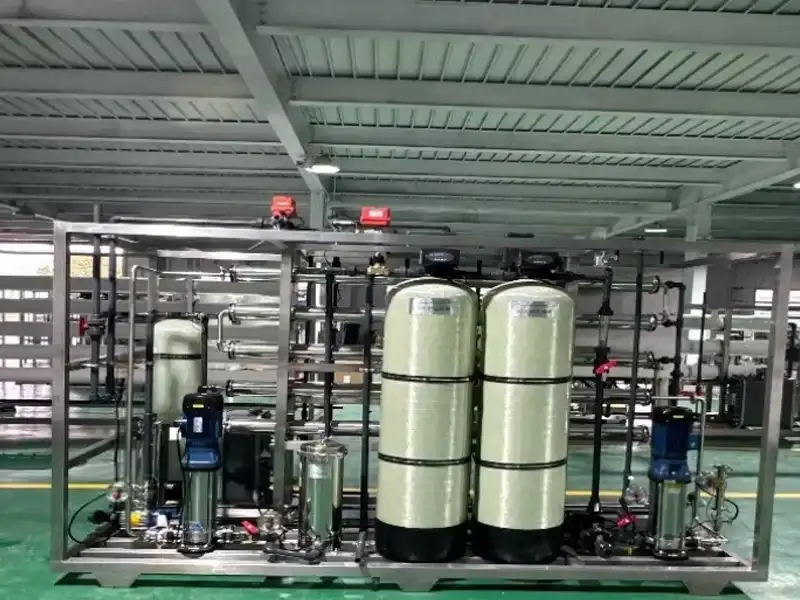

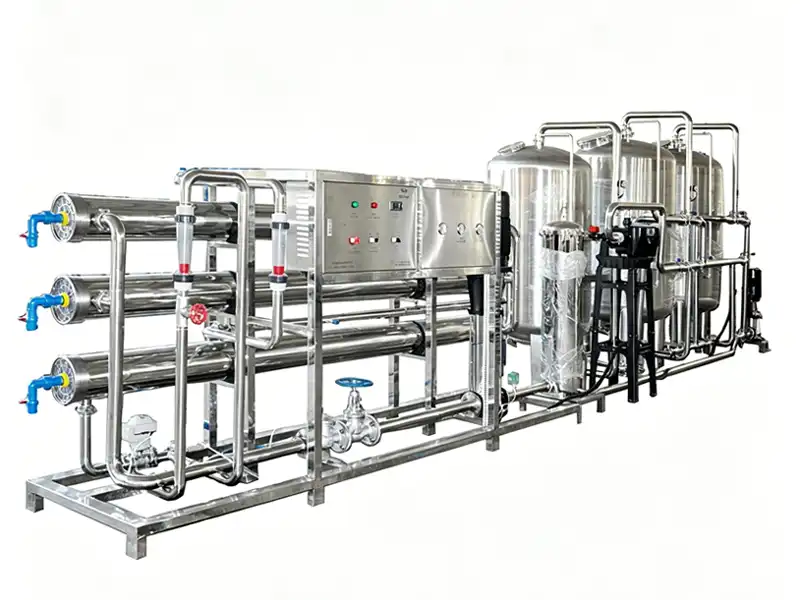

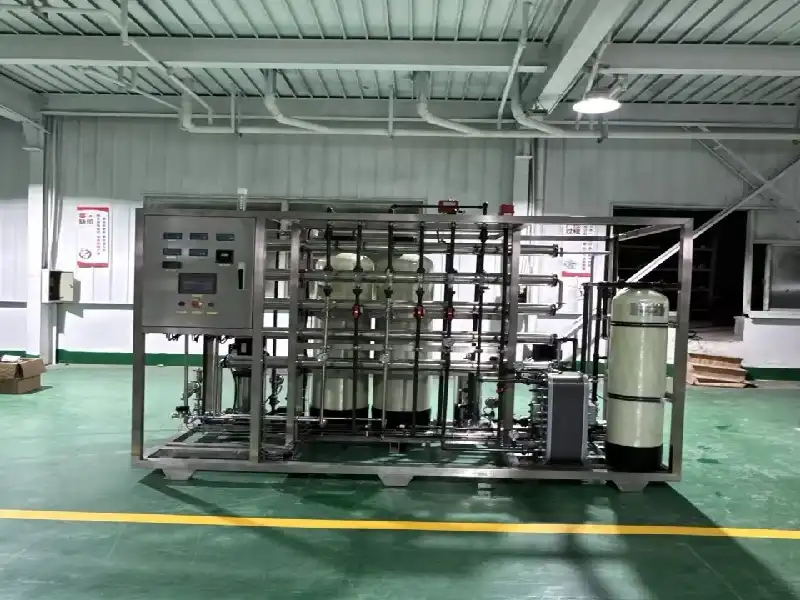

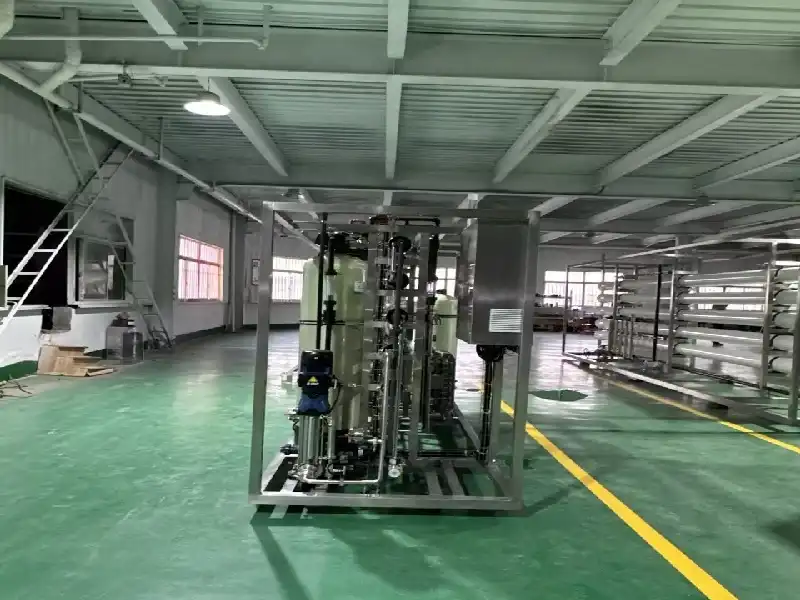

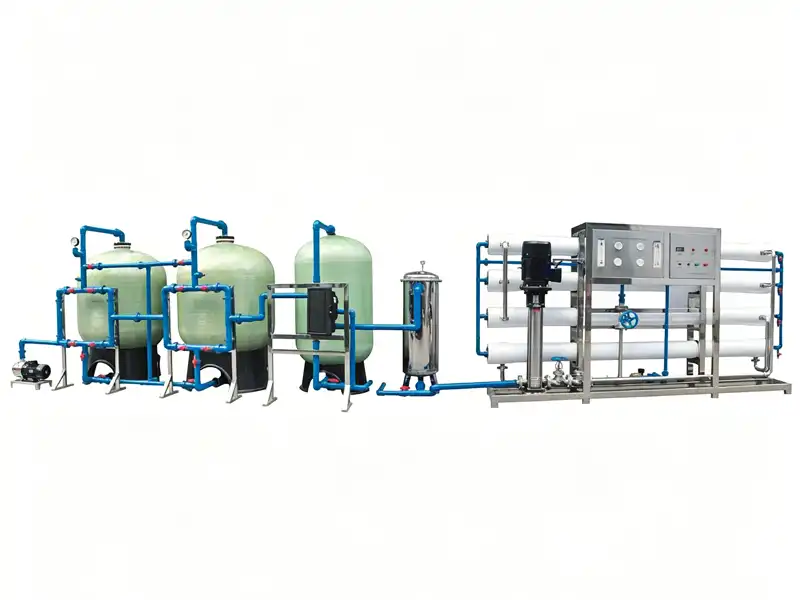

Industrial RO Water Treatment Plant Manufacturer
An industrial RO water treatment plant is a system that uses RO membrane technology to purify industrial water, effectively removing salts, heavy metals, bacteria, and other impurities. It features high desalination rates, stable operation, a high degree of automation, and low maintenance costs, and is widely used in industries such as power generation, food processing, pharmaceuticals, electronics, chemicals, and boiler feedwater.
- Capacity: 0.25ton ~50 tons/hour
- Function: Reverse Osmosis
- Application: Pure water/mineral water/drinking water
Price: $3500–$8000
Product Introduction
An industrial RO water treatment plant, also known as an industrial reverse osmosis water purification system or industrial RO system, is a water treatment facility that uses reverse osmosis (RO) membrane separation technology to produce industrial-grade pure water. It efficiently removes dissolved salts, heavy metals, bacteria, organic matter, and other impurities from water, with a desalination rate typically reaching 95% to 99% or higher. As the core equipment for industrial pure water production, the industrial RO water treatment plant offers advantages such as high purification efficiency, stable operation, a high degree of automation, modular design, and low maintenance costs. It can be customized to suit different water sources and process requirements and is widely used in the electronics, pharmaceutical, food and beverage, power generation, chemical, boiler feedwater, and seawater desalination sectors, providing stable, reliable, and high-quality water for various industrial production processes.
Working Principle of Industrial RO Water Treatment Plant
- Raw Water Pretreatment (Pre-Treatment)
Equipment such as quartz sand filters, activated carbon filters, and water softeners is used to remove suspended solids, residual chlorine, organic matter, and hardness, thereby protecting the RO membranes. - Fine Filtration
A 5-μm security filter is used to further trap fine particles and prevent impurities from entering the reverse osmosis system. - High-Pressure Pumping
A high-pressure pump pressurizes the raw water to a level higher than osmotic pressure, providing a stable operating pressure for the reverse osmosis membranes. - Reverse Osmosis Filtration
Water molecules pass through the RO membranes, while dissolved salts, bacteria, viruses, heavy metals, and most organic compounds are retained, achieving highly efficient purification. - Permeate Water Collection
The purified water enters the purified water tank and can be used directly in industrial production or fed into a subsequent ultrapure water treatment system. - Concentrate Discharge
Impurities retained by the RO membranes are discharged from the system with the concentrate, ensuring the continuous and efficient operation of the membrane elements. - Automatic Control and Monitoring
The PLC control system monitors key parameters such as pressure, flow rate, and conductivity in real time, enabling automatic operation, alarm functions, and maintenance management.
Industrial RO Water Treatment Plant Models
Explore our complete range of Industrial RO Water Treatment Plant models designed for different water sources, capacities, and industrial applications. Find the right reverse osmosis system for your project or contact our engineers for a customized solution.
Need the Right RO System? Get a Custom Quote Today →

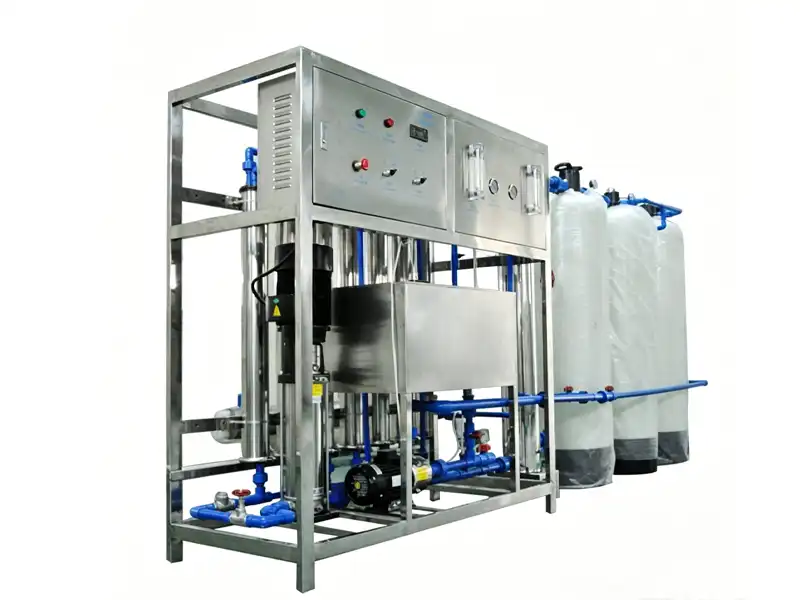

1000LPH RO Water Treatment Plant

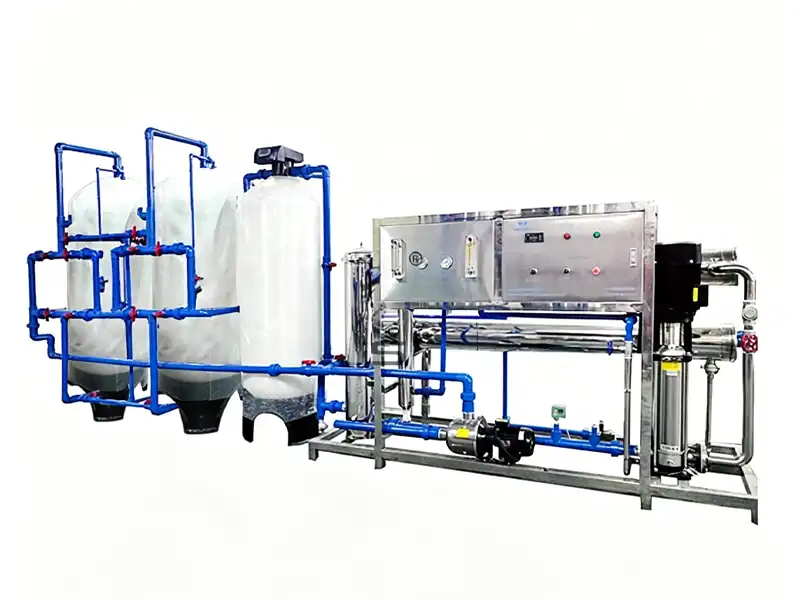

2000LPH RO Plant
3000LPH RO Plant
4000LPH RO Water Purification..
5000LPH RO Water Purifying Machine
6000LPH RO Plant Filtration Machine
8000LPH Commercial RO Plant

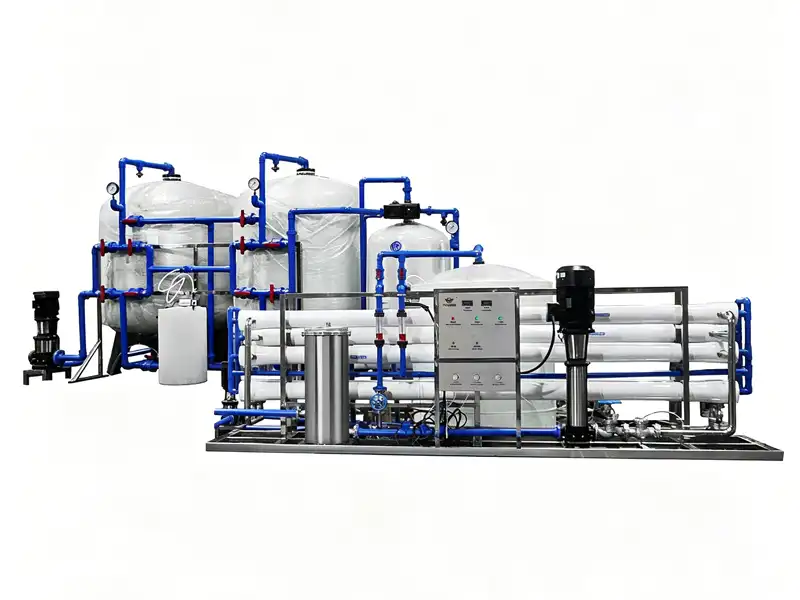

10TPH RO Water Treatment Plant
12TPH Commercial RO Water Filter..
15TPH Pure Water Treatment System
20TPH Water Purification Machine
500LPH Factory Use RO system
25TPH Water Purification Machine
30TPH Reverse Osmosis Water..
Customized Solutions
Specifications
| Model | Capacity (L/H ) | Power (kW) | Membrane | Entrance Diameter (mm) | Size(L*W*H) ( mm) | Weight (Kg) |
| TS-RO-0.5 | 500L | 1.1 | 4040 | Φ32 | 1700*700*1700 | 200 |
| TS-RO-1T | 1000L | 1.5 | 4040 | Φ32 | 1550*900*1800 | 200 |
| TS-RO-2T | 2000L | 3 | 4040 | Φ38 | 4800*700*2000 | 300 |
| TS-RO-3T | 3000L | 4 | 8040 | Φ48 | 4700*1000*2300 | 400 |
| TS-RO-4T | 4000L | 5 | 8040 | Φ48 | 4700*1000*2300 | 450 |
| TS-RO-5T | 5000L | 7 | 8040 | Φ60 | 5000*1200*2300 | 600 |
| TS-RO-10T | 10000L | 11 | 8040 | Φ60 | 9000*2000*2000 | 800 |
| TS-RO-15T | 15000L | 16 | 8040 | Φ72 | 10000*1870*3000 | 1000 |
| TS-RO-20T | 20000L | 30 | 8040 | Φ60 | 10000*1800*4000 | 1550 |
Process

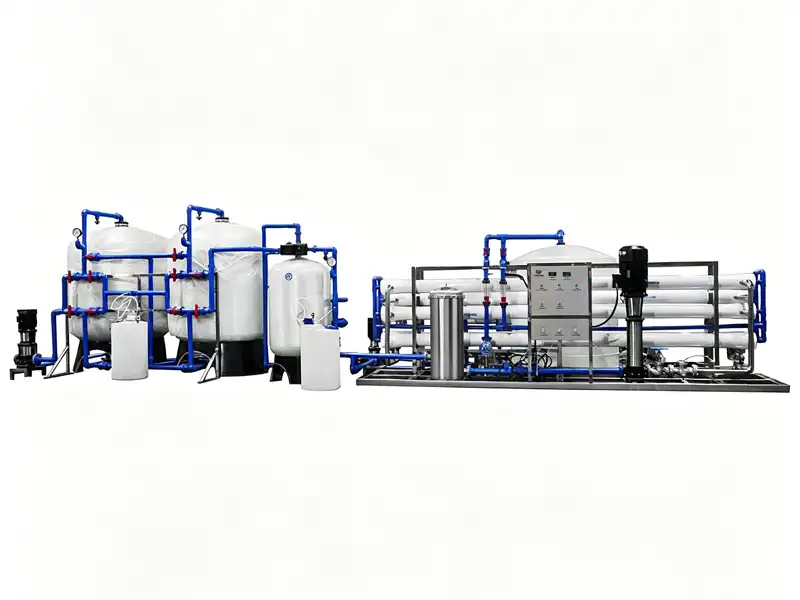

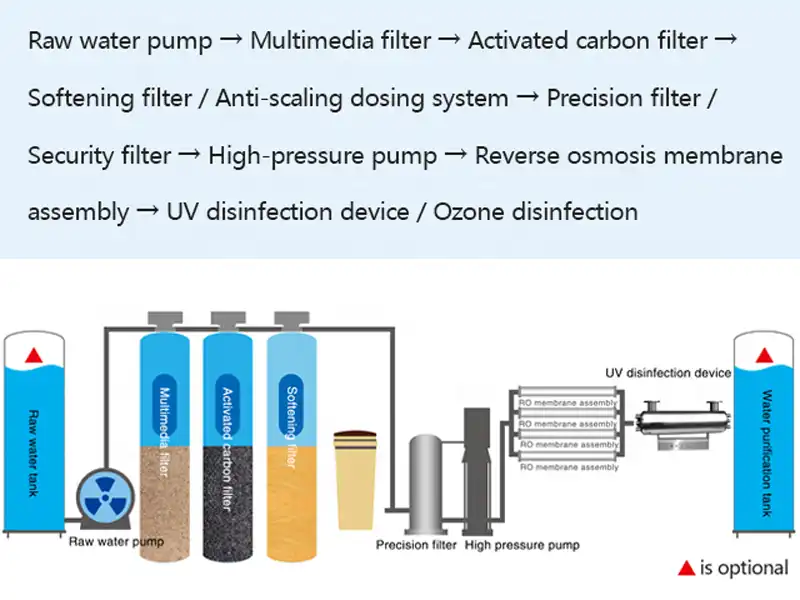

Water Treatment Flow Chart: Raw Water Tank—Raw Water Pump—Multi-Media Filter—Activated Carbon Filter—Water Softener (Sodium Ion Exchanger)—Precision Filter—RO Main Unit (including chemical cleaning device)—Ozone Generator—Finished Product
- Silica Sand Filter: It can remove the suspended solids and gluten particles in the water, thus reducing the turbidity of the water.
- Active Carbon Filter: It can remove the pigment, smell, and a large number of biological organisms in the water, softening the water.
- Sodium ion exchanger: It can remove calcium and magnesium ions in the water, so as to soften the water.
- Precision Filter: It can ensure that the granularity of the water entering the reverse osmosis membrane is less than 0.1 μm.
- Reverse Osmosis: The Reverse Osmosis device is an equipment to purify the saline water through the action of a pressure difference across a semi-permeable membrane. It is called reverse osmosis, as it is counter to the natural penetration direction. Different materials have different osmotic pressures. The reverse osmosis can remove more than 97% of the soluble salt and above 99% of the colloids, microorganisms, particles, and organic materials, becoming the best first-choice equipment in the engineering of modern purified water, highly purified water, and space water (super-purified water). The most highlighted features are low energy consumption, no pollution, simple technique, high-quality water, and convenient operation and maintenance.
- UV Sterilizer: It uses UV to kill some bacteria that may also pass through the reverse osmosis system.
- Ozone Sterilizer: Some bacteria may not be killed by UV. The sterilizer uses ozone to kill those bacteria.
| No. | Device Name | Introduce |
| 1 | Raw water tank(Optional/Customer-prepared) | ● Water storage and pressure buffering can ensure a continuous and stable water supply. ● Small models/stable supply areas are optional; large models/unstable pressure areas require self-supply. Oversized tanks incur high shipping costs. |
| 2 | Raw water pump | Provides the required pressure to the pre-filter |
| 3 | Multimedia filter | ●Tank material can be FRP/SS304. ●The interior is filled with quartz sand, which can filter large particles of impurities, suspended matter, and colloids. ●The replacement cycle of quartz sand is about 2-3 years, depending on the water quality. |
| 4 | Activated carbon filter | ●Tank material can be FRP/SS304 ●Activated Carbon Filter: Built-in carbon removes color, odor, residual chlorine, and organic compounds. Colloid removal: 60%-80%; Organic removal: 47%-60%. ●The activated carbon replacement cycle is about 2 ~ 3 years, depending on the water quality. |
| 5 | Softening filter / Anti-scaling dosing system | ●Tank material can be FRP/SS304 ●Softens water/anti-scaling. Removes Ca²+/Mg²+ to reduce hardness; Prevents RO membrane clogging & extends lifespan |
| 6 | Precision filter / Security filter | Precision Filter: Remove particulate matter (5μm) as the RO membrane’s final barrier |
| 7 | High-pressure pump | Provides stable high-pressure power to ensure that the reverse osmosis membrane operates under optimal conditions. |
| 8 | Reverse Osmosis system | ●RO membrane brands include Vontron, Huamo, etc. ●RO membranes effectively remove heavy metals, bacteria, viruses, and contaminants with a 98% desalination rate, delivering pure, safe water. |
| 9 | Disinfection and sterilization device (optional) | ●UV disinfection device / Ozone disinfection ●The virus can be quickly disinfected, and the specific configuration is selected according to the quality of the raw water. |
| 10 | Membrane cleaning system (optional) | ● Reverse-flow cleaning removes contaminants from membrane pores, restores flux, stabilizes pressure, and enhances system efficiency while extending RO membrane lifespan. ● Generally, large equipment can be equipped. Please contact us for details. |
| 11 | Insulation (optional) | For cold regions (winter/year-round), insulation can be added to the design to prevent freezing. |
| 12 | Container shell (optional) | Pressure and corrosion-resistant, suitable for outdoor use and transport. Protects filters/RO membranes. Select based on Environmental and transport needs. |
Advantages
5-Stage Precision Filtration | Powerful Purification
◆Five-layer system (multi-media filter + activated carbon + softener + precision filter + RO membrane) removes sediments, colloids, and heavy metals to enhance water quality.
◆Effectively purifies various water sources (groundwater, surface water, tap water, and rain) for residential, commercial, and multi-scenario use.
Nanoscale Filtration | Zero-Risk Safety
◆0.0001-micron RO membrane (1/1,000,000 of a hair’s width) blocks 98%+ of heavy metals (lead, cadmium), bacteria, viruses, pesticides, and dissolved salts.
◆Chemical-free process ensures zero secondary pollution; Standard UV sterilization guarantees safe drinking water.
Energy-Saving Operation | Cost Control
◆Modular design lowers maintenance costs; smart start-stop cuts energy waste by 25%.
◆Scale-free water reduces scale buildup in heaters/washers, extending appliance lifespan by 30-50%.
Smart Auto-Control | Effortless Maintenance (optional)
◆Real-time monitoring triggers safety protocols (dry-run shutdown, overflow protection).
◆Self-diagnosis + filter alerts minimize manual checks; one-touch operation simplifies usage.
Compact Modular Build | Flexible Fit
◆Real-time monitoring triggers safety protocols (dry-run shutdown, overflow protection).
◆Self-diagnosis + filter alerts minimize manual checks; one-touch operation simplifies usage.
Eco-Efficient Design | Resource Reuse
◆Pressure-driven osmosis consumes 1/10 the energy of distillation, reducing carbon footprint.
◆30%+ water efficiency: Recycle concentrated wastewater for cleaning, irrigation, and non-drinking purposes.
Application
- Electronics and Semiconductor Industry: Production of high-purity and ultrapure water for chip manufacturing and the cleaning of electronic components.

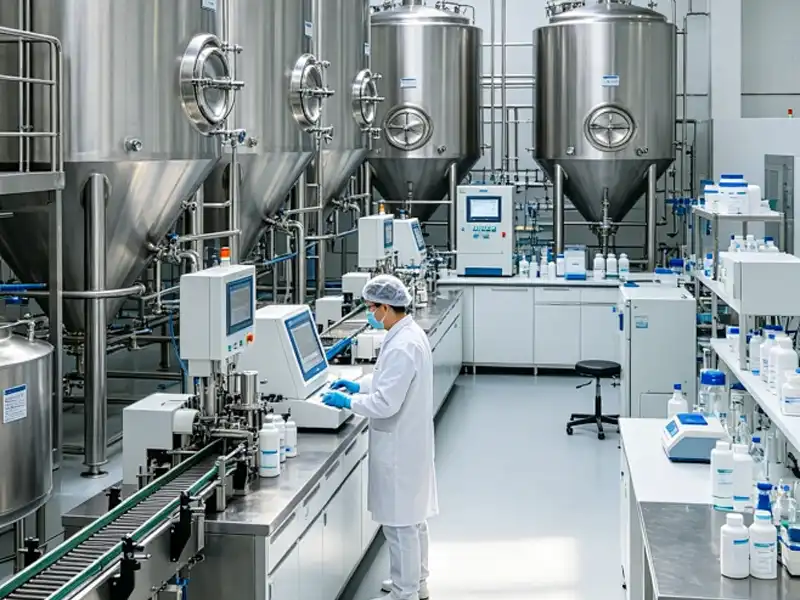

- Pharmaceutical Industry: Supply of purified water meeting standards for pharmaceutical production, water for injection, and equipment cleaning.
- Food and Beverage Industry: Purification of water for drinking, bottled water, fruit juice, dairy products, and food processing.
- Power Industry: Supply of boiler make-up water, circulating cooling water, and demineralized water to minimize equipment scaling and corrosion.

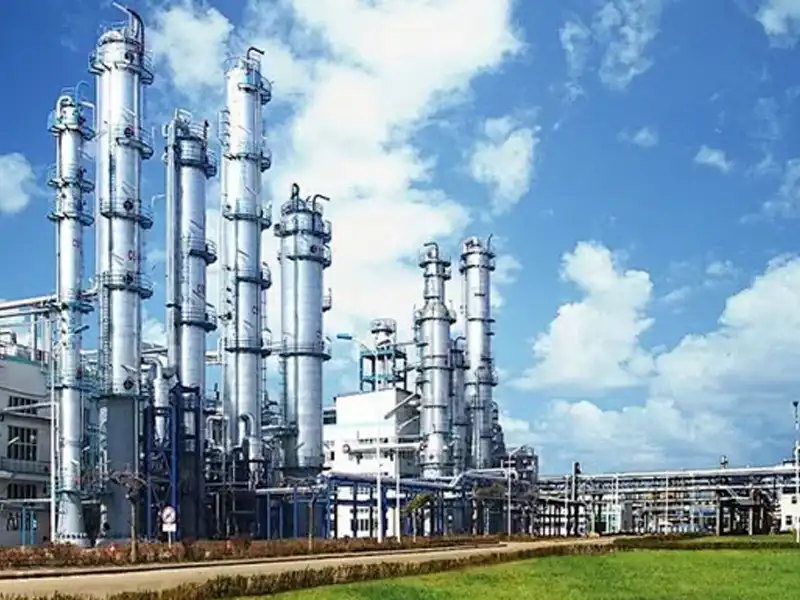

- Chemical Industry: Meeting the demand for high-quality water in chemical production, solution preparation, and processing operations.
- Boiler Feedwater Treatment: Removal of dissolved salts and hardness to enhance boiler efficiency and extend equipment lifespan.
- Seawater and Brackish Water Desalination: Processing seawater or high-salinity groundwater into usable water for industrial or domestic purposes.

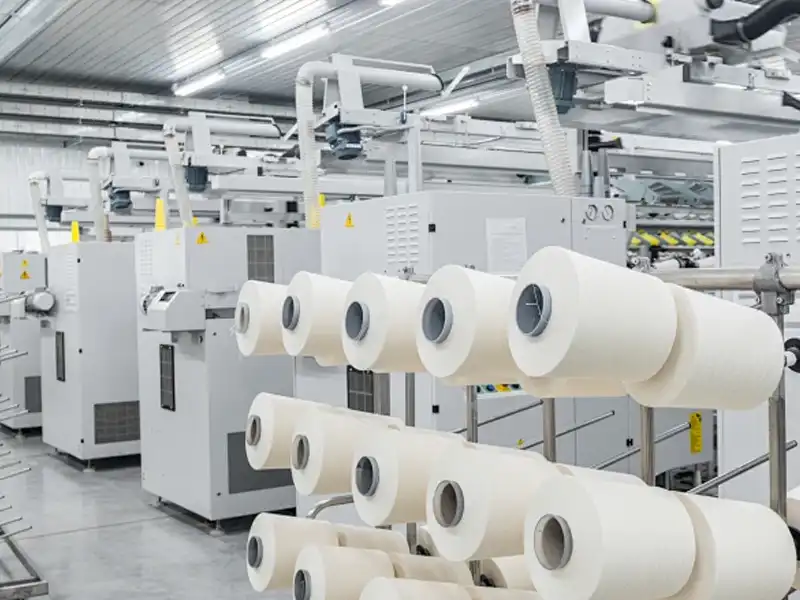

- Textile and Printing & Dyeing Industry: Supply of consistent process water to improve dyeing quality and product uniformity.
- Automotive Manufacturing Industry: Water for component cleaning, surface treatment, and painting processes.
- Municipal and Commercial Water Supply: Centralized water purification systems for facilities such as schools, hospitals, hotels, and laboratories.
Electronics Industry
Pharmaceutical Industry
Food and Beverage Industry
Power Industry
Chemical Industry
Boiler Feedwater Treatment
Seawater Desalination
Textile and Dyeing Industry
RO Water Treatment Plant Manufacturer and Supplier
We are a professional manufacturer and supplier of RO water treatment plants, offering complete equipment systems. Our core products include RO units for purified and mineral water, pretreatment systems for mountain spring water, EDI ultrapure water systems, water softening units, and seawater desalination equipment. We also provide auxiliary systems such as sterilization units, ozone disinfection systems, and integrated filtration units, capable of treating various types of raw water to meet standards for bottled drinking water.
We provide comprehensive water purification solutions addressing challenges such as impurities, hardness, bacteria, and high salinity in raw water, offering fully customized production lines tailored to specific output requirements, water quality standards, and site conditions. Please contact our professional technical team for one-on-one consultations regarding plant design, water quality analysis, and equipment selection.
